TwistPort Adaptor with SMA Connectors

TwistPort Adaptor with SMA Connectors
klik pada gambar untuk melihat gambar lebih besar

Kategori:RF elements
Kode:TPA-SMA
Harga:Rp 410.000,00
  Rp 650.000,00

Allows connection of any SMA-based radio to any TwistPortTM antenna. TPA-SMA provides industry most used RP-SMA female coaxial interface in dual linear H+V polarization. RP-SMA connectors are placed directly on waveguide, avoiding use of inner coaxial cables and minimizing loss to necessary minimum.

Download Brosur



What is TPA-SMA
TwistPort Adaptor (TPA) adapts 3rd party radios to RF elements® proprietary TwistPortTM waveguide connector. We typically provide custom made TPA for specific 3rd party radios, following their shape and connector setup. Custom designed TPA allows for the best RF performance, minimal RF loss and excellent user experience.

Not all radios are able to fit custom designed TPA. They might be too bulky, too heavy or simply we do not know about them. For these radios we created TPA that provides RP-SMA female connector interface.

























































































































































RP-SMA Coaxial Interface
TPA-SMA provides industry most used RP-SMA female coaxial interface in dual linear H+V polarization.



Performance
TPA-SMA covers an ultra-wide band spectrum of 5180-6400 MHz and performs with superb efficiency.

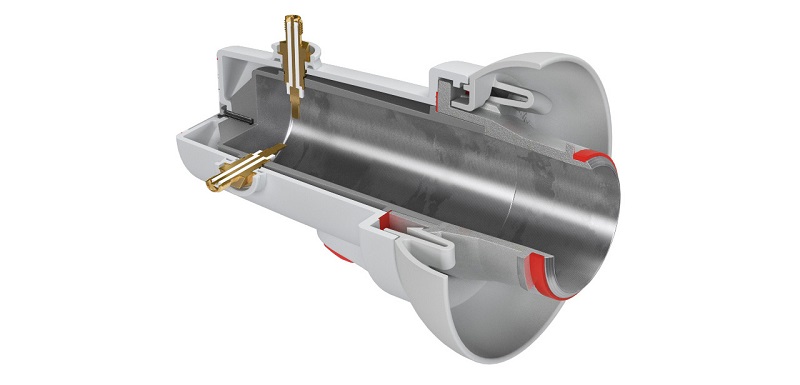

Minimized Loss
RP-SMA connectors are placed directly on waveguide, avoiding use of inner coaxial cables and minimizing loss to necessary minimum.







Antenna Connection TwistPort - Quick Locking Waveguide Port
Radio Connection 2x RP-SMA female
Materials Insert - Aluminium Alloy
  Adaptor - UV stabilized and weather resistant ABS plastic
Flame Rating UL 94 HB
Temperature -40°C to +60°C (-40°F to +140°F)
Wind Survival 160 km/h
Weight 0.21 kg / 0.46 lbs – single unit
  0.28 kg / 0.61 lbs – single unit incl. package
  29.0 kg / 63.9 lbs – carton (100 units)

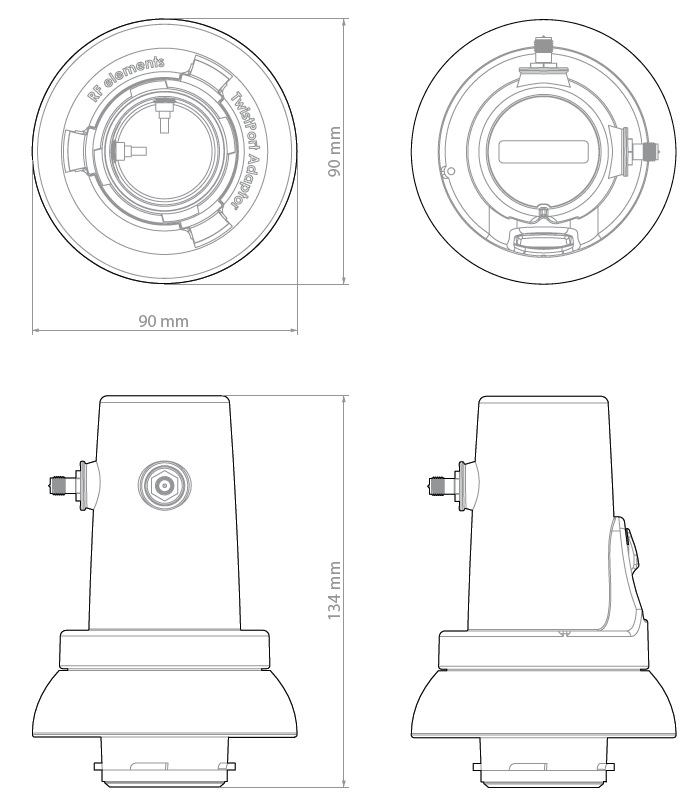

Single Unit Retail Box: 155 × 100 × 97 mm

Frequency Range 5180 - 6400 MHz
Polarization Dual Linear H + V
VSWR Max 1.8
Impedance 50 Ohm

Compatible any TwistPort™ Antenna





Download Datasheet



Download UserGuide
